Viewer Movement in OpenGL

Tom Kelliher, CS 320

Mar. 2, 1998

Announcements: Pong hand-out.

From last time:

1. 3-D models.

2. Rotations in 3-D.

3. Depth buffering.

Outline:

1. Understanding clipping volumes and their specifications.

2. Projections.

3. Movements in 3-D.

4. Toward a better movement model.

Assignment: Read Chapter 6. (Consider Chapters 1 through 6, sans 3, having been assigned.)

Preliminary: Viewing Volumes

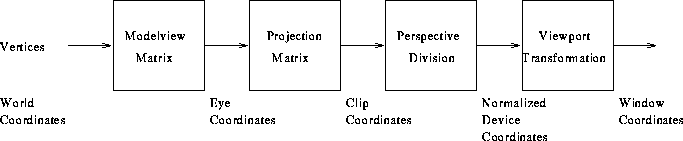

Are our viewing volume coordinates relative or absolute?

Consider:

1. By default, the eye is at looking down the -z axis.

2. What does

   glOrtho(-10.0, 10.0, -5.0, 5.0, -2.0, 2.0);


   mean?

3. Other viewing modes:
   1. glFrustum: same parameters as glOrtho. What's a frustum? Truncated pyramid.

   2. gluPerspective: fovy, aspect ratio, zNear, and zFar.

Moving and Positioning the Eye

View specification:

1. One way of specifying eye position and viewing angle:
   1. Specify position of eye.

   2. Specify center of field of view.

   3. Specify ``up.''

2. Use of gluLookAt() in cubeview.c:

   void display(void)
   {

    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

   /* Update viewer position in modelview matrix */

      glLoadIdentity();
      gluLookAt(viewer[0],viewer[1],viewer[2], 0.0, 0.0, 0.0,
                0.0, 1.0, 0.0);

   /* rotate cube */

      glRotatef(theta[0], 1.0, 0.0, 0.0);
      glRotatef(theta[1], 0.0, 1.0, 0.0);
      glRotatef(theta[2], 0.0, 0.0, 1.0);

    colorcube();

    glFlush();
      glutSwapBuffers();
   }


   Note order of matrix multiplications: view, then model transformations.

3. Is it really necessary to have view and model transformations?

Example Runs

1. P1: Stock viewcube using frustum. Demonstrate clipping, invisibility when up vector is parallel to line of sight, walking through the cube.

2. P2: Perspective view with fovy 45, near 2, and far 20.

3. P3: Perspective view with fovy 135, near 0.1, far 100.

A Movement Model

Problems with viewer movement in cubeview:

1. Must specify movement in global coordinate values.

2. Can't speak of left, right, forward, backward, etc.

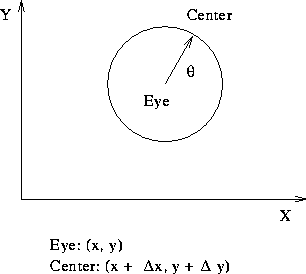

Consider this model:

1. What should the radius of the circle be?

2. Given x, y, and , what's and ?

3. How do we handle left, right, forward and backward?

4. Suppose, to see the ``big picture,'' I wanted to elevate on the Z-axis. What should I do with center? Is that easy to do?
