Memory Management II

Tom Kelliher, CS 318

Apr. 13, 2012

Administrivia

Announcements

Assignment

See reading assignment on class web site.

From Last Time

Memory Management I.

Outline

  1. Non-contiguous allocation.

  2. Paging.

  3. Segmentation.

Coming Up

Linux kernel modules.

Non-Contiguous Allocation

Problems with contiguous allocation:

  1. Problems with fixed partitions:
    1. Limited degree of multiprogramming.

    2. Internal fragmentation.

    3. Placement policies.

  2. Problems with variable partitions:
    1. External fragmentation, compaction.

    2. Swapping is difficult, if not impossible (address binding).

Alternative: non-contiguous allocation.

Paging

The idea:

  1. Entire process in memory.

  2. Partition memory into frames of size $2^m$.
    1. Typical frame sizes: 512 to 8K bytes.

    2. Frame size constrained by MMU design.

  3. Logical address space is broken into pages.
    1. Page size = frame size.

    2. Pages can be arbitrarily mapped onto frames.

    3. However, process ``sees'' a contiguous, flat address space.

  4. MMU splits logical address:
    1. Assume logical address is $n$ bits.

    2. Page number field is $n - m$ most significant bits.

    3. Page offset field is $m$ least significant bits.

    4. Using table look-up, convert logical page number to physical frame number.

    5. Frame offset = page offset.

Why is frame, page size a power of two?

Paging hardware:

\includegraphics[width=6.5in]{Figures/paging.eps}

Design issues:

  1. Page size:
    1. Internal fragmentation.

    2. Maximizing I/O transfer rate.

  2. I/O -- process passes logical address to kernel.

  3. Implementation of the page table.
    1. Small register file.

    2. Array in memory.

  4. Issues for memory implementation:
    1. Page table must be in contiguous memory.

    2. Page table base register.

    3. ``Logical memory access'' requires two physical accesses.
      1. Translation look-aside buffer.

      2. TLB entries contain: Page number, frame number pairs.

      3. Issue: Context switches.

      4. Only a few entries needed.

\includegraphics[width=6.5in]{Figures/tlb.eps}

Size, Structure of Page Table

  1. Problem: huge page tables. How did this happen?

  2. Solutions:
    1. Valid/invalid bit.

    2. Page table limit register.

    3. Multi-level paging.

Multi-Level Paging

Why not just use the limit register?

A two-level paging scheme for a 32-bit logical address:

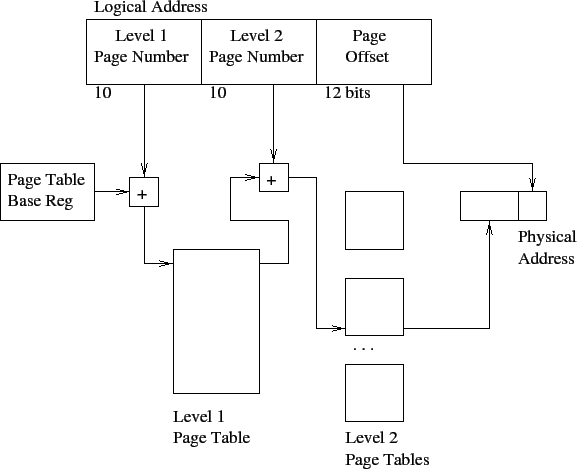

\includegraphics{Figures/twolvlpaging.eps}

Is the page table really any smaller?

What does this solve?

  1. Non-contiguous (paged) page table.

  2. ``Holes'' in page table (valid bit) shrink it.

Sun SPARC: 3 level paging.

64-, 128-bit logical addresses?

Protection

  1. Is it possible for a process to access an arbitrary memory location?

  2. Using valid bit to introduce ``holes'' into logical address space.

Page Sharing

  1. What can be shared?

  2. Read-only pages.

  3. Page alignment -- segment the logical address space.

  4. Page de-allocation.

Segmentation

  1. ``Object oriented'' approach:
    1. User views program as a set of objects:
      1. Stack.

      2. Routines.

      3. Arrays.

      4. ...

    2. Each object stored in a segment.

  2. Generalization of paging.

  3. Logical address is a segment ``name'' and an offset.

  4. Variable-sized ``page'' having a base and length.

  5. Frames start on $2^m$ memory boundaries. Segments start anywhere. Therefore, must add a segment base and offset.

  6. Straight paging: external fragmentation.

  7. Solution: Paged segmentation (x86 architecture).

Segmentation hardware:

\includegraphics[width=6.5in]{Figures/segmentation.eps}
