Introduction

Tom Kelliher, CS 325

Jan. 28, 2009

Administrivia

Announcements

Assignment

Read Chapter 1.

Outline

  1. Syllabus.

  2. A ``grand tour:'' OS and system views, structure, and operation.

Coming Up

Continued ``grand tour.''

Syllabus

  1. Objectives:
    1. Study operating system design.

    2. Understand threads and concurrency: Banking example.

    3. Appreciate connections to other areas of computer science.

  2. C refresher project.

  3. Internet resources.

  4. Linux internals project orientation.

  5. Class preparation.

  6. (Doubtful) Possibilities for Other topics: deadlock, distributed systems, security and protection.

A Grand Tour

The Main Thing

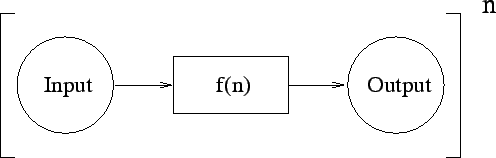

An OS's responsibilities boil down to managing:

\includegraphics{Figures/processing.eps}

OS As Interface

\includegraphics{Figures/osblock.eps}

(Process = running program. Separate address spaces. Threads share an address space.)

  1. Top-down view: virtual machine abstraction -- convenient ``user'' interface. Abstractions: files, applications. I/O devices integrated into filesystem.
  2. Bottom-up view: management of real resources: CPU cycles, memory, disk space, device allocations.
  3. Secondary concerns: efficiency, fairness.

Abstractions:

  1. Multiprogramming, protection and security.

    Threads.

  2. Virtual memory.
  3. File systems.
  4. Virtualization.

OS Components

  1. Kernel. Static. Process/thread, memory, I/O management and access.

    Timers.

  2. Daemons. Provide additional services.
  3. System applications: compilers, linkers, loaders.
  4. User applications: shells, windowing systems, browsers, editors, etc.

The ``Hello world'' program:

  1. Compiled into assembly code.
  2. Assembled in machine code.
  3. Written to a file.
  4. Loaded into memory.
  5. Linked against system libraries.
  6. Executes.
  7. Makes supervisor calls to access I/O devices through OS.

Computing System Organization

  1. CPU, memory, I/O devices block diagram.

    I/O device bandwidth/latency differences.

    Process execution within this context. Data/code locality: caches. VM. DMA.

  2. Single CPU, multiple CPU chips, multiple cores, hyperthreading. (Phoenix: eight ``CPUs.'')

    Why can't we just turn up the clock?

    Efficiencies with multiple cores vs. multiple CPU chips.

    Programming consequences.

  3. Process, do I/O, repeat model.

  4. Memory hierarchy. Speed, density, cost, volatility.

  5. I/O architecture. Abstract models, device drivers, devices. Plug'n'play/pray.

OS Structure

  1. Multiprogramming.

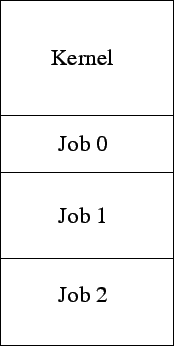

    Mental memory model:

    \includegraphics{Figures/multiprogrammingModel.eps}

    Timesharing vs. batch.

    Short-term, long-term schedulers.

    Physical, virtual memory. Swapping.

  2. Interrupt driven kernel operation.

    Dual (or more) CPU modes: user, kernel modes. Privileged operations and/or I/O spaces.

    Interrupts, traps. Hardware timers.



Thomas P. Kelliher 2009-01-27
