MIPS Assembly Language I

Tom Kelliher, CS 220

Dec. 1, 2003

Administrivia

Announcements

Assignment

From Last Time

Outline

  1. Arithmetic and logical instructions.

  2. Instruction operands.

  3. Instruction formats.

Coming Up

Conditional execution.

Arithmetic and Logical Instructions

Instruction Semantics

add a, b, c        # This, BTW, is a comment.
sub a, a, b
addi a, a, 100
and a, b, c
andi a, a, 32000
De-compile each of the following:
add a, b, c
add a, a, d
add a, a, e
De-compile further into a single HLL statement.

Compile each of the following:

a = b + c;
d = a - e;
f = (g + h) - (i + j);

Operands are registers.

Instruction Operands

Properties of registers:

  1. Number of registers. 32 for MIPS, including the hardwired register. Two ways of naming: numbers, convention ``nicknames''.

  2. Number of bits/register. 32. Word size.

    Implications: size of address space, datapath width.

Using MIPS Registers

Recall:

f = (g + h) - (i + j);
Assume f through j are in $1 through $5, respectively. Compile the statement.

Memory Addressing

  1. HLL have complex data structures such as arrays and structs. How are they handled?

  2. Data transfer instructions: load, store. operands: memory address, register.

  3. Actual MIPS instructions: lw, sw.

    Base and offset addressing: lw $s0, 8($s1)

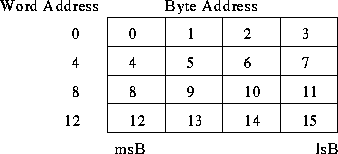

  4. MIPS memory is byte addressable, so word addresses differ by 4:

Compile the following:

g = h + A[8];
where g is in $s1, h is in $s2, and the base address of A, an array of 100 words, is in $s3.

Base, offset addressing.

Compile each of the following:

A[12] = h + A[8];

A[j] = h + A[i];

Base, offset addressing, using constant offsets, is similarly useful for accessing members of structures.

Instruction Formats

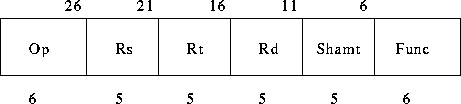

MIPS R-Format

Example instruction: add $s2, $s0, $s1

Fields:

  1. Op: Opcode.

  2. Rs: First source operand.

  3. Rt: Second source operand.

  4. Rd: Destination operand.

  5. Shamt: Shift amount --- ignore for now.

  6. Func: Function. Further specification of the opcode.

In assembly: Op/Func Rd, Rs, Rt

Notes:

  1. Example encodings:

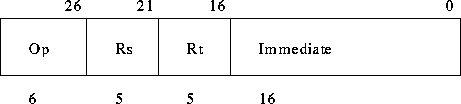

MIPS I-Format

Example instruction: lw $s0 8($s1)

Fields:

  1. Op: Opcode.

  2. Rs: Source register.

  3. Rt: Destination register.

  4. Address: 16-bit signed immediate value.

    Offset range?

In assembly: Op/Func Rt, address(Rs)

Notes:

  1. This format also used for immediate operands: addi $1, $2, 123.

  2. Example encodings:
