Recall that the operating system is called into play during any one of the
Anytime the operating system runs, the possibility of the current process
losing control of the processor exists. Thus, typically, a process cannot
guarantee that a particular code block which accesses shared variables (a
so-called critical section) can execute atomically (i.e., without
- Hardware interrupts
- Software trap
- System call
However, if the processor provides a kernel-mode disable interrupts
instruction, then it is possible to atomically execute a critical section.
Assume that this instruction disables all hardware interrupts and that it
is available only in kernel mode.
State a set of conditions which, if met, would guarantee the atomic
execution of a critical section. Why is this a poor method of achieving
atomicity for very, very long critical sections? Why should the disable
interrupts instruction be privileged?
There are several disadvantages to the device I/O scheme using multiple
buffers and interrupts discussed in class. For example, the user is
required to release buffers strictly in the order in which they were
acquired. Also, a collection of buffers has to be dedicated to either
input or output, i.e., there is no way to use buffers to accomplish both
tasks. This could lead to a situation where there are unused buffers in
the system, but it is impossible to do input since all unused buffers are
dedicated to hold output data.
One solution to these problems is to maintain a buffer pool which
can be used for both input and output. With this scheme, each buffer is in
one of three states at any time:
- INFULL --- input buffer full and available to be returned to
the user on request.
- OUTFULL --- output buffer full and waiting to be output to
the I/O device when ready.
- EMPTY --- empty buffer available for either input or output.
There are four system calls that are invoked by the user to accomplish I/O:
- Gbufin() --- returns a pointer to the beginning of
the next full input buffer.
- Rbufin(bufptr) --- places the buffer pointed to by
bufptr back into the empty buffer pool (Hint: convert the pointer to an
- Gbufout --- returns a pointer to the beginning of an empty
buffer into which the user places data to be output.
- Rbufout(bufptr) --- places the full output buffer pointed to
by bufptr onto the output queue.
In addition, there are two interrupt handlers, one for input and one for
- IHinput --- called when an input operation has been
- IHoutput --- called when an output operation has been

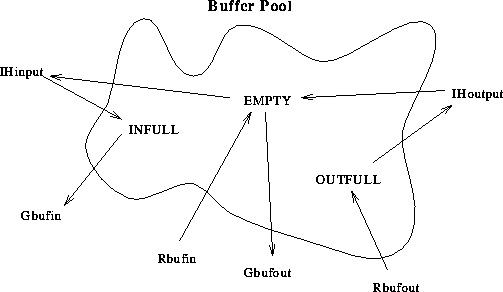

The diagram below illustrates how a buffer can move between these different
states, and the role of the system software described above.
Write the pseudo-code for the four system routines and the two interrupt
handlers. You may assume that there are no critical section problems,
i.e., it is as if each of the routines executes with interrupts disabled.
You may assume that high-level data structures such as lists and the
appropriate manipulation routines exist, if you wish, but be sure to
indicate precisely what you are assuming.
