I/O Devices and Interrupts

Tom Kelliher, CS26

Oct. 29, 1996

  1. Questions on the homework?

  2. Midterm in 1 week.

  3. Will review on Thursday and wrap-up 4.1--4.3.

I/O Device Interfacing

I/O devices:

  1. Keyboard.

  2. Mouse.

  3. Printer (serial, parallel)

  4. Terminal

  5. Expansion cards:
    1. Video adapter.

    2. Ethernet card.

    3. SCSI controller.

    4. Terminal concentrator.

    5. CD controller.

Generic devices:

  1. Serial port.

  2. PS/2 port.

  3. Parallel port.

  4. USB, FireWire ports (new).

Split-bus design:

Contrast single-bus design.

This is the external bus, not the internal CPU bus.

The bus is broken down into:

  1. Data bus.

  2. Address bus.

  3. Control bus:
    1. Read/Write.

    2. Acknowledge.

    3. Interrupt lines.

    4. Clear/Reset.

    5. Error.

    6. Memory/I/O.

    7. ...

Compared to memory, how does the CPU communicate with I/O devices?

  1. Ports --- The addresses an I/O device responds to.

  2. Interrupt --- How a device gets the CPU's attention.

  3. DMA channel --- Allows an I/O device to access memory directly.

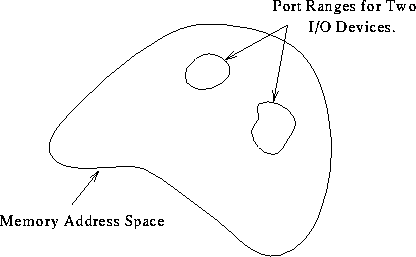

  4. Memory-mapped I/O ports
    1. I/O ports in same address space as memory --- addressed same as memory.

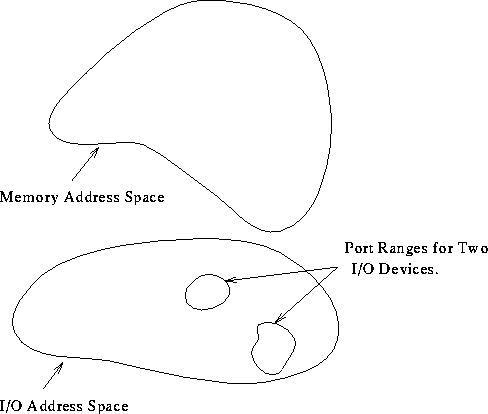

  5. Separate I/O address space
    1. Accessed through peek and poke.

    2. Control bus signal indicates which bus, memory or I/O is in use.

    3. Both buses can't be active simultaneously(?).

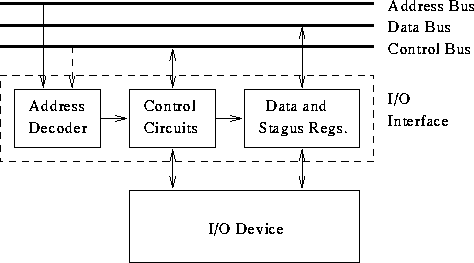

  6. A device's bus interface:

  7. I/O ports don't behave like memory words:
    1. They're ``active.''

    2. Status bits often reset when status register read.

Consider writing a buffer to a modem:

write:      lb $t0, 0($t1)
poll:       lw $t2, modemstatus($0)
            andi $t2, $t2, 1
            bnez $t2, poll
            sb $t0, modemdata($0)
            addi $t1, $t1, 1
            addi $t3, $t3, -1
            bnez $t3, write
  1. $t0 holds the next character to write to the modem.

  2. $t1 is the address of the next character to be written.

  3. $t2 holds the modem's status word. Assume that bit one of the status word is the modem buffer busy bit.

  4. $t3 is the count of how many characters to write to the modem.

  5. modemstatus and modemdata are two ports associated with the modem.

  1. Is the modem memory-mapped?

  2. CPU wastes cycles polling.

  3. One modem transfer requires CPU to read memory and write modem. (Non-DMA.)


  1. Interrupts are a mechanism allowing a CPU to ``disconnect'' from active I/O devices to continue doing useful work.

  2. CPU much faster than most I/O devices.

  3. Polling wastes CPU cycles if there's other work to be done --- multiprogrammed system.

Conceptually, how do interrupts work?

``Unplanned'' function calls setup by planned function calls (syscalls, etc.).

Why does the kernel initiate the I/O operation?

Components of an interrupt system:

  1. Interrupt request line(s). Priorities, arbitration within level, masking.

  2. Interrupt acknowledge line(s).

  3. Interrupt handlers (service routines).

  4. A mechanism for indicating what device interrupted and why.

Interrupt Priorities, Masking

  1. With multiple interrupt request lines, can prioritize interrupts.

  2. Why do this?

  3. Interrupt masking --- interrupt disabling. Used for:
    1. Critical sections (CS 42).

    2. Ensuring that high-priority interrupting devices are serviced before low-priority devices.

    3. Non-maskable interrupt.

Interrupting Device Identification

If we assign one IRQ line per device, identification isn't a problem:

What if some lines are shared?

One possibility: polling.

Another: vectored interrupts.

  1. When interrupting device received ACK, it places interrupt vector on bus.

  2. CPU uses vector as index into table of interrupt handlers.

  3. Starvation?

Other Interrupt-Like Events

  1. Traps:
    1. Divide-by-zero.

    2. Privileged instruction.

    3. Memory protection.

    4. Interval timer.

  2. Software interrupts:
    1. Used to make transition from user mode to kernel mode.
